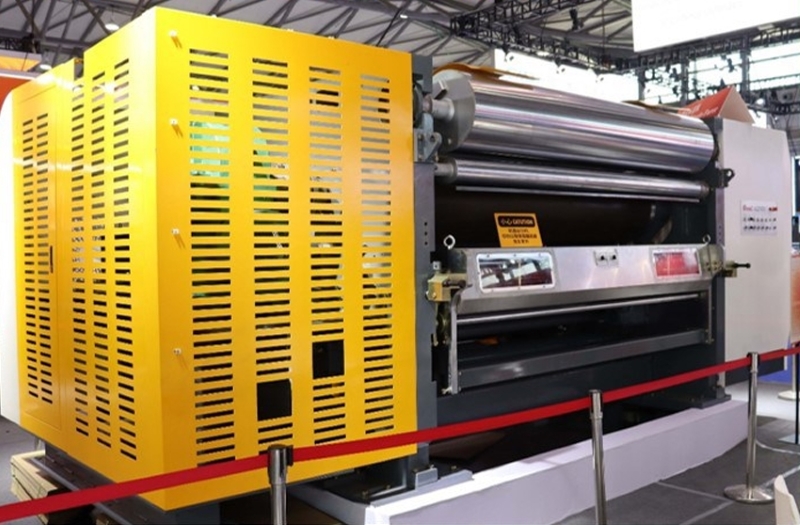

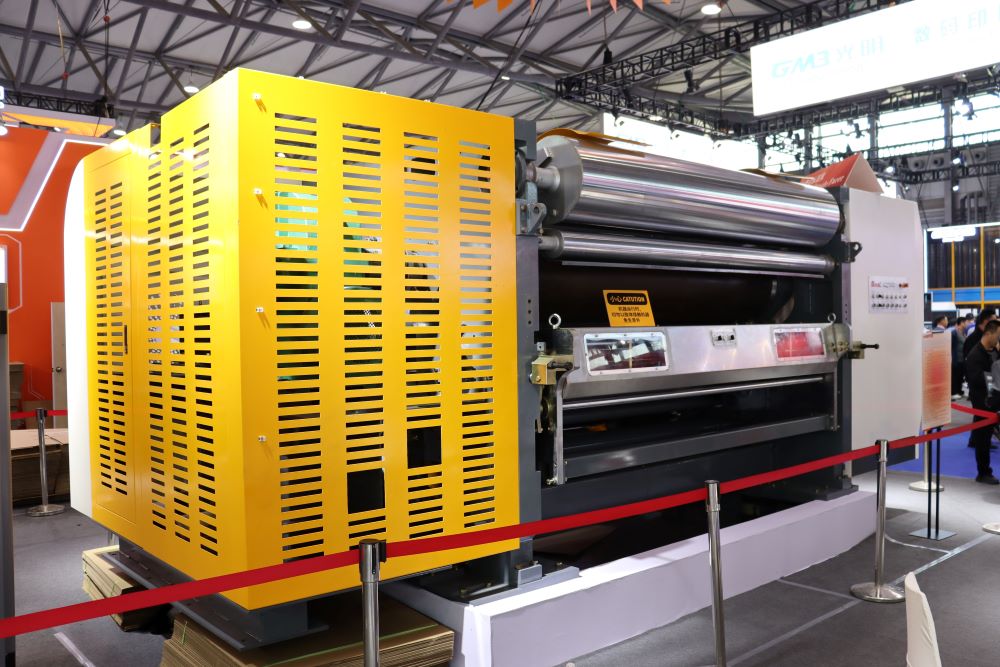

Single Facer (Belt Type, Cassette Type, Internal Section)

Core Advantages

This Belt-Type Cassette Internal Section Single Facer is a high-efficiency corrugated production component, with key advantages:

1. Cassette-type multi-flute design enables fast order conversion, adapting to flexible production demands.

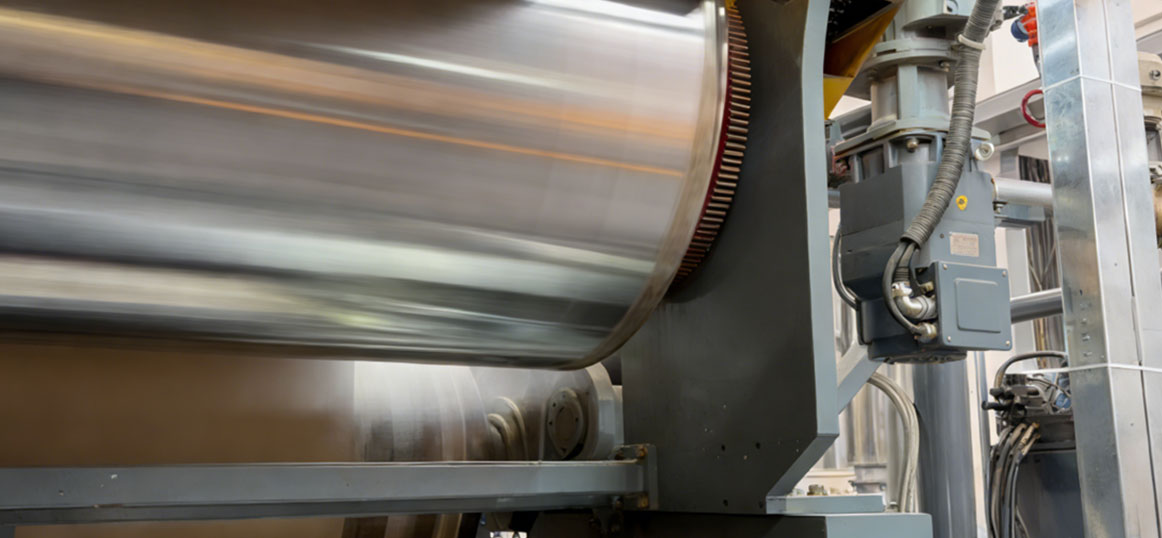

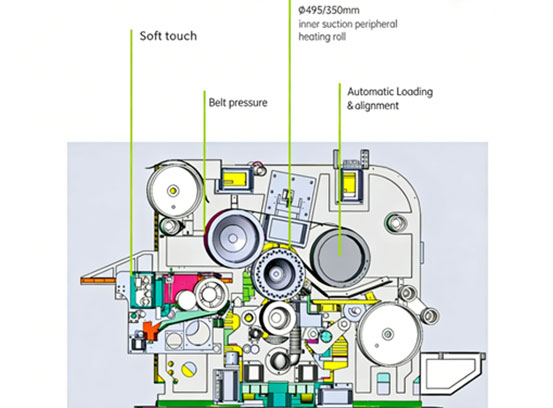

2. Negative pressure inner suction peripheral heating roller (495/330 or 540/330 size) operates with low noise and resonance, ensuring stable, quiet performance.

3. Translatable glue unit (700mm from the main body) simplifies cleaning and maintenance, reducing downtime.

4. Independent motor-driven glue roller idles during shutdown to prevent dry paste buildup, cutting waste and upkeep.

Application & User-Focused Design

It supports 1800–2800mm production widths, with a max 320m/min production speed (400m/min design speed). It addresses user pain points:

1. Cassette-type quick-roll change (5–10min) minimizes interruptions for frequent order switches.

2. High-temperature grease-equipped corrugated/pressure roller bearings boost durability under high loads.

3. Oil pressure-controlled roller/belt pressure adjusts automatically by paper width, gram weight and speed, optimizing bonding for diverse materials.

Why Choose This Single Facer?

1. Hydraulic cylinder-controlled glue unit with soft touch function ensures precise, consistent bonding.

2. Compact size (L4.6m×W4.3m×H2.3m for 2500mm width) saves workshop space.

3. Compatible with standard utilities (8–10kg/cm² steam; 4–8kg/cm² compressed air), fitting most factory setups.

It balances fast changeover, low maintenance, and high-speed performance—ideal for corrugated lines.
