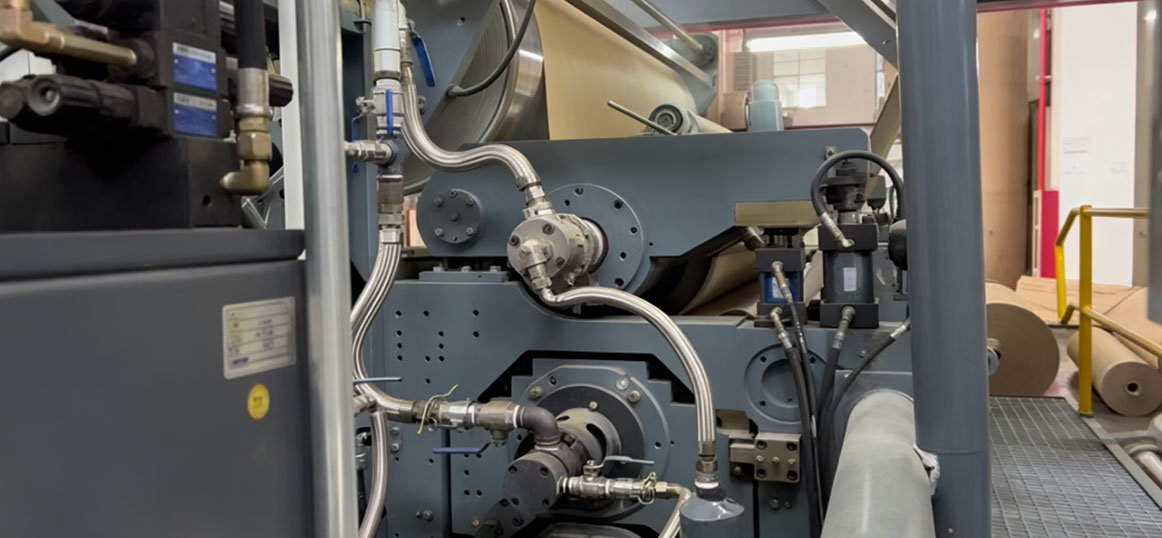

This Cassette Type Negative Pressure Single Facer is a core component for corrugated board production, with key advantages:

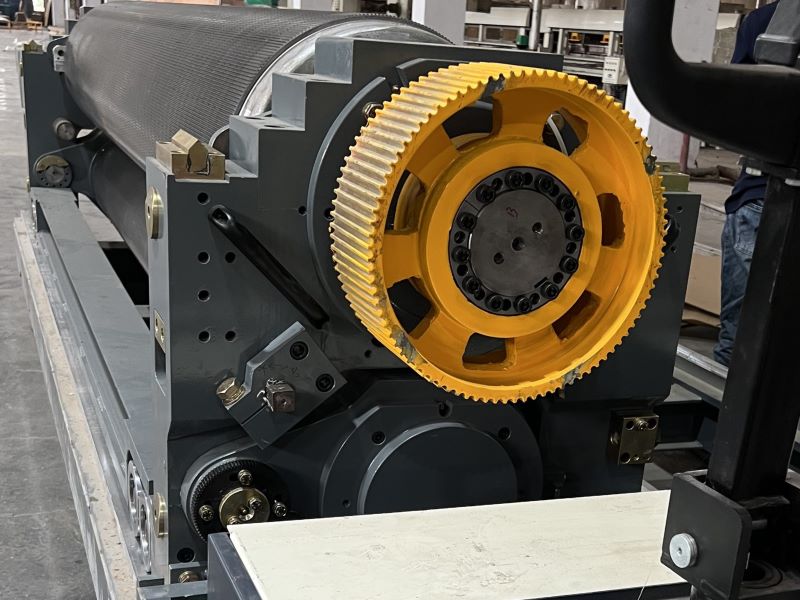

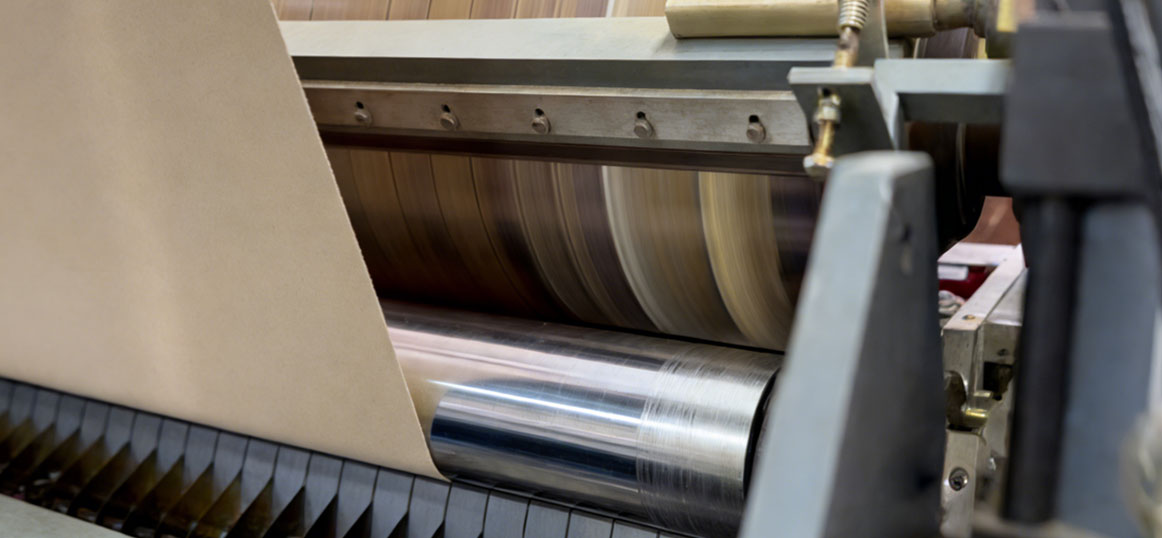

1. Cassette-type multi-flute design enables quick order conversion, supporting flexible production demands.
2. Negative pressure inner suction heating roller (495/330 or 540/330 size) operates with low noise and resonance, ensuring stable, quiet running.
3. Translatable glue unit (700mm from the main body) simplifies cleaning and maintenance, cutting downtime.

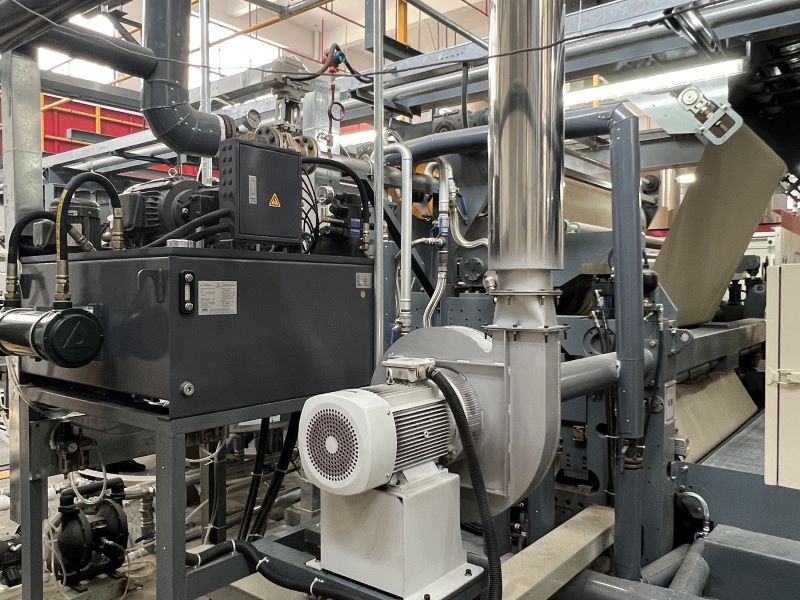

4. Independent motor-driven glue roller idles to prevent dry paste buildup, reducing waste and upkeep.
It supports 1800–3550mm production widths, with a max 400m/min production speed. It addresses user pain points:

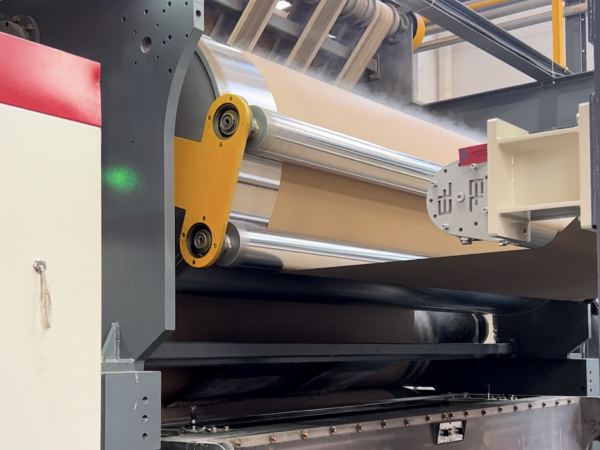

1. Cassette-type quick-roll change (5–10min) minimizes production interruptions for frequent order switches.
2. High-temperature grease-equipped corrugated/pressure roller bearings enhance durability under high loads.
3. Oil pressure-controlled roller pressure adjusts automatically by paper weight, optimizing bonding for diverse materials.
1. Hydraulic glue unit (soft touch function) and pressure roller LINE PRESSURE CONTROL ensure precise, consistent bonding.
2. Compact size (L4.6m×W4.3m×H2.3m for 2800mm width) saves workshop space.
3. Compatible with standard utilities (8–10kg/cm² steam; 4–8kg/cm² compressed air), fitting most factory setups.
It balances fast changeover, low maintenance, and high speed—ideal for corrugated lines.

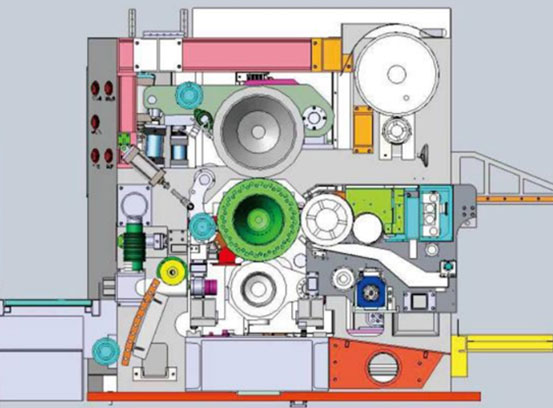

This layout diagram illustrates the precise mechanical and structural design of the negative pressure single facer, showcasing the integrated components that enable efficient corrugated board formation. Advantage technology: Soft Touch, Line Pressure Control to make no mark board.

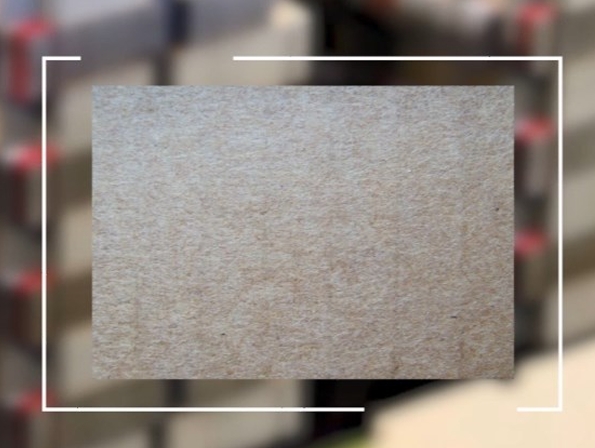

Almost no mark board, improve BST performance.
| Production Width | 1800mm / 2200mm / 2500mm / 2800mm / 3150mm / 3350mm / 3550mm | ||
| Design Speed | *450m/min | *400m/min | ||
| Production Speed | *400m/min | *350m/min | ||
| Machine Size | L4.6m × W4.3m × H2.3m (2800) | ||
| Roll Change Method | Cassette type Quick-roll change | ||
| Roll Change Time | 5 Min ~ 10 Min | ||
| Steam | 8~10kg/cm² (Max 13kg/cm²) | ||
| Compressed Air | 4~8kg/cm² | ||
| Power Supply | AC380V 50Hz 3PH | ||

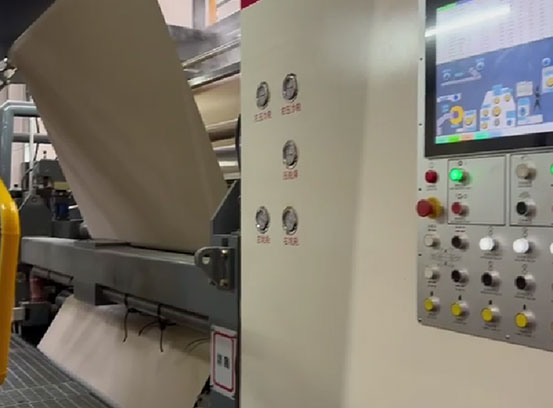

Equipped with an intelligent control system, the cassette type negative pressure single facer optimizes corrugating speed and reduces downtime, enhancing overall production efficiency.
