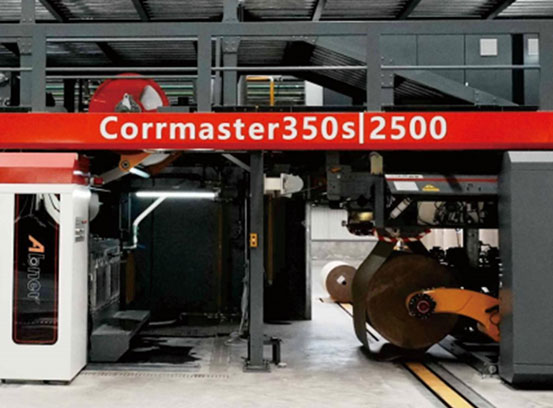

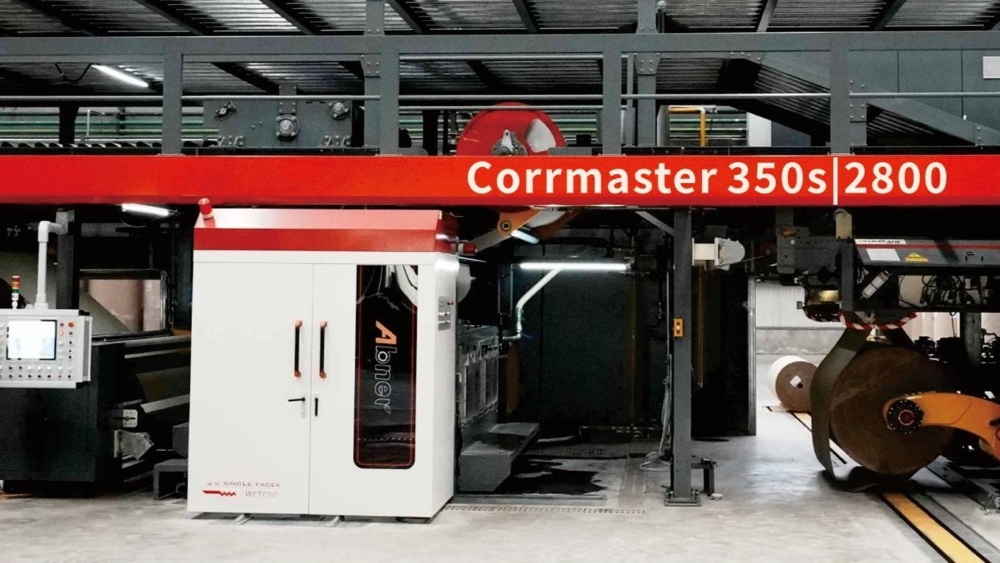

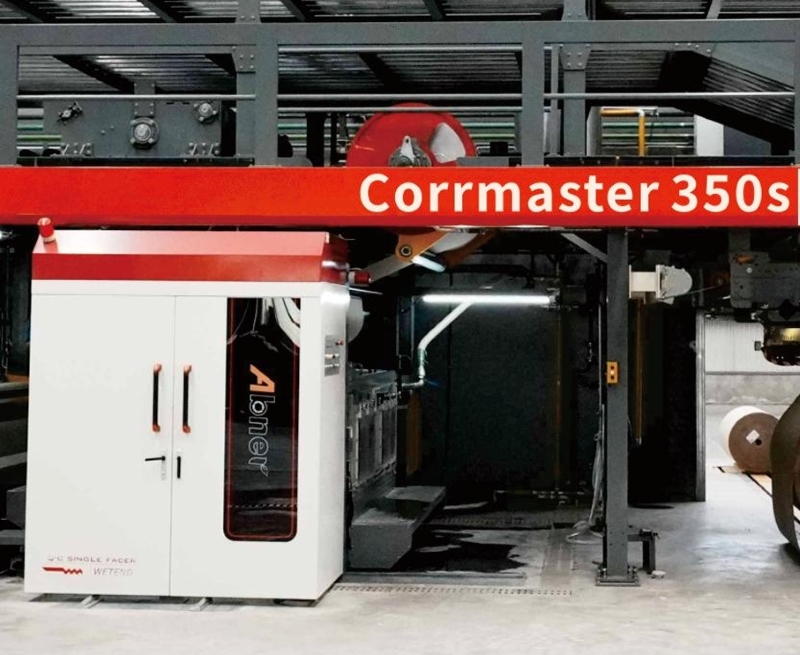

Cassette Type Positive Pressure Single Facer

Core Advantages

This Cassette Type Positive Pressure Single Facer (XSF-35Q/XSF-30Q) is a reliable corrugated board production component, with key advantages:

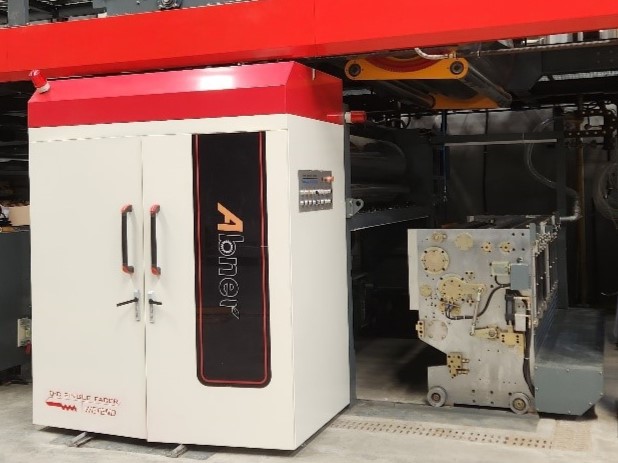

1. Cassette-type multi-corrugation design enables fast order conversion, adapting to flexible production needs.

2. Positive pressure blowing-formed 460/360 roller operates with low noise and resonance, ensuring stable, quiet performance.

3. Translatable glue unit (700mm from the main body) simplifies cleaning and maintenance, reducing downtime.

4. Independent motor-driven glue roller idles during shutdown to prevent dry paste buildup, cutting waste and upkeep.

Application & User-Focused Design

It supports 1800–2800mm production widths, with a max 300m/min production speed (250m/min for specific setups). It addresses user pain points:

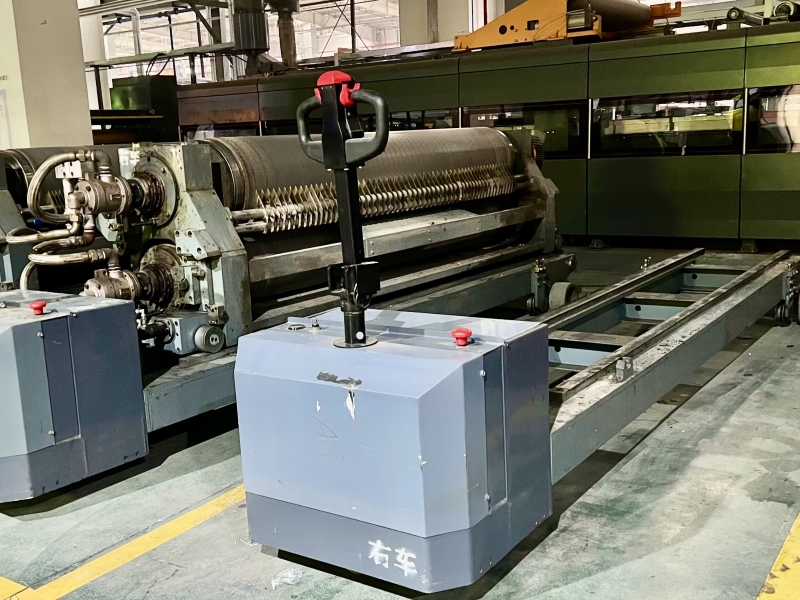

1. Cassette-type quick-roll change (15–30min) minimizes interruptions for frequent order switches.

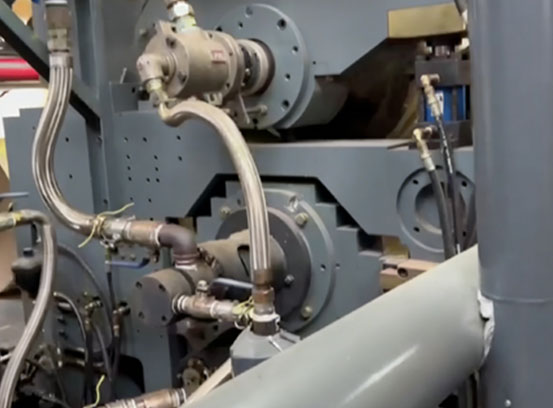

2. High-temperature grease-equipped corrugated/pressure roller bearings boost durability under high loads.

3. Oil pressure-controlled roller pressure adjusts automatically by paper width/weight/speed, optimizing bonding for diverse materials.

Why Choose This Single Facer?

1. Hydraulic cylinder-controlled glue unit with flexible ballast function ensures precise, consistent bonding.

2. Compact size (L4.6m×W4.3m×H2.3m for 2500mm width) saves workshop space.

3. Compatible with standard utilities (8–10kg/cm² steam; 4–8kg/cm² compressed air), fitting most factory setups.

It balances flexible production, low maintenance, and stable performance—ideal for corrugated lines.
