Solutions

Corr Master offers turnkey intelligent corrugator line solutions covering 1800-3300mm working widths and 250-450m/min production speeds, available in E/S/P Series to match diverse order demands. Integrating 26 independent intellectual property technologies—including BST line pressure control, 35% steam-saving thermal conduction, and full-servo precise cutting—our lines achieve 20% starch saving, 25% electricity saving, and stable ±0.5mm cutting accuracy. We provide one-stop services from factory layout, equipment customization, on-site installation to post-sales training & 18-month warranty, empowering customers to realize efficient, energy-saving, and flexible corrugated board production.

Customizable Single Face Line & Auxiliary Equipment Package

Offers single face lines (BSF-40QN/XSF-45QN) with 1800-3300mm width, supporting 3-7ply corrugated board forming; Includes pre-heaters (PH-G5R/PC-X3R) with national pressure vessel certification, ensuring uniform paper heating; Provides hydraulic mill roll stands (MRS-M2T) with 4-6 point braking and 8-cylinder reel lifting for safe raw material handling; Matches heavy-duty conveyor bridges (BC30I) and up-down stackers (MGTK-300/400) to form a complete production chain.

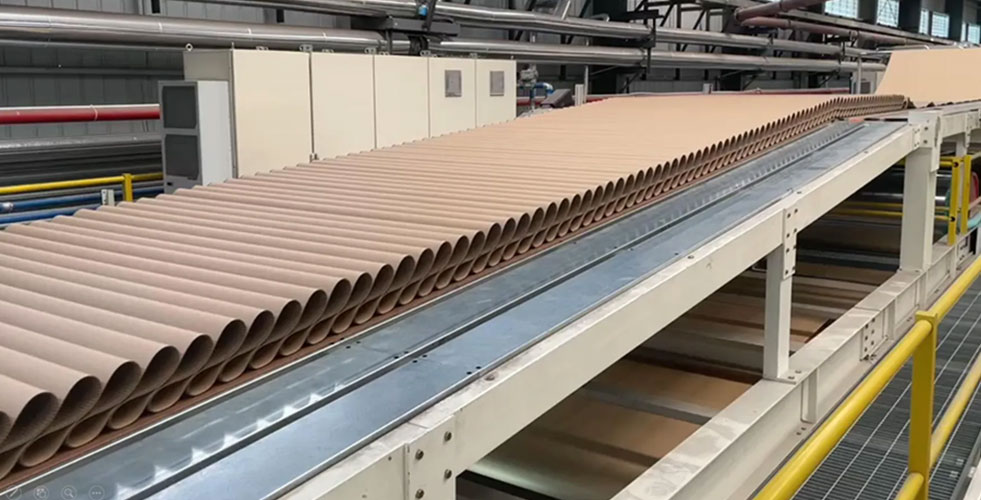

Cost-Saving Corrugator Solution (E Series) – Ideal for Medium-Speed Production

Applies PLC&HMI control with CanBus inter-unit communication, simplifying operation and reducing labor dependency; Adopts traditional heat conduction structure optimized for 250m/min stable production, suitable for fragmented order structures; Incorporates 35% steam-saving continuous thermal conduction technology and 20% starch-saving precise sizing system; Configures cassette-type single facer (BSF-40QN) for 5-10min quick roll change, enhancing production flexibility.

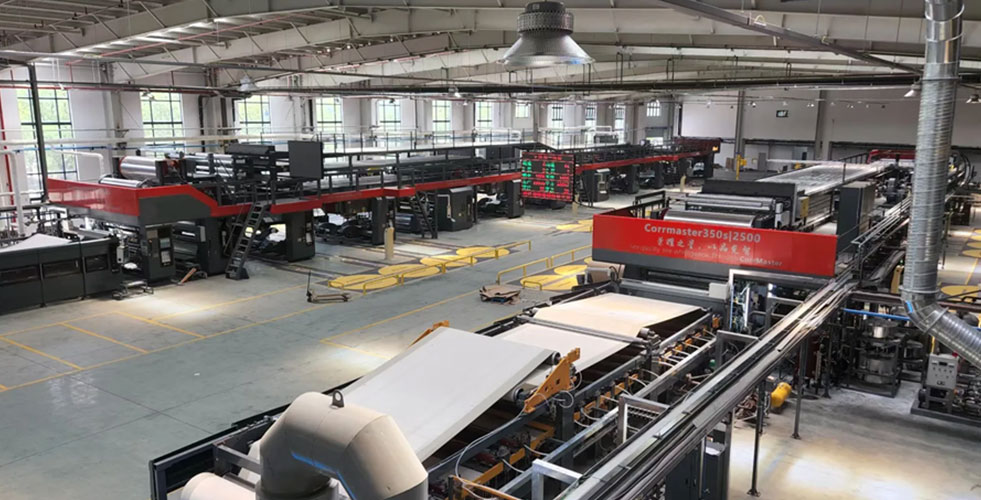

Corr Master High-Speed Intelligent Corrugator Line (S Series) – Max 400m/min Efficiency

Adopts German BECKHOFF IPC control system for seamless whole-line synchronization and stable high-speed operation; Features New WCS2.0 wet end process and adaptive cruise control, supporting 300m/min non-stop order change without speed reduction; Equipped with cavity hot plate double-facer and servo-driven slitter scorer, ensuring uniform heating and ±0.5mm slitting precision; Integrates real-time bending & warping detection to minimize defective products and improve board flatness.
