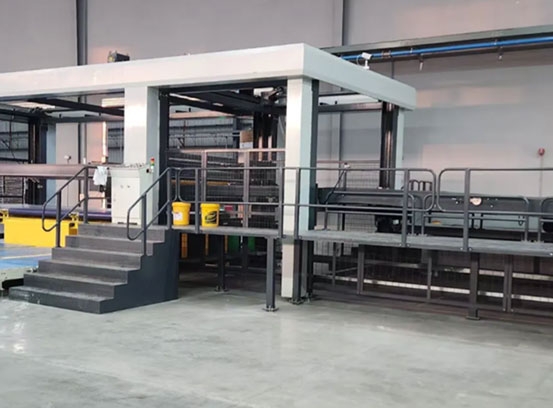

This Abner Up Down Stacker is a high-performance cardboard stacking solution for corrugator lines, with key advantages:
1. Vacuum adsorption belt + automatic control brush brake device arranges cardboard neatly on the stacker, ensuring high-quality stacking results.
2. Automatic pressure control system sets unique pressure curves for each user, adjusting automatically by cardboard length, width, mold and speed.
3. No-spacing cardboard separation mechanism separates stacks clearly and accurately, avoiding redundant accumulation—supporting 300m/min line order changes while maintaining stacking quality.

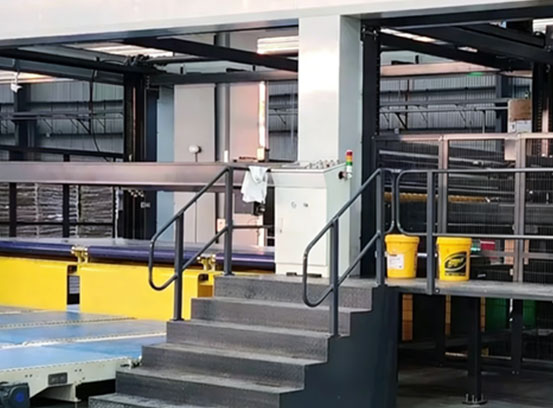

It supports 2200–3300mm production widths and 3600/4500mm board lengths, with max 400m/min line speed (150–2200m/min separation speed). It addresses user pain points:
1. Standard automatic suction function enhances cardboard handling stability during stacking.
2. ~100% counting accuracy ensures precise stack quantity control, reducing manual verification work.

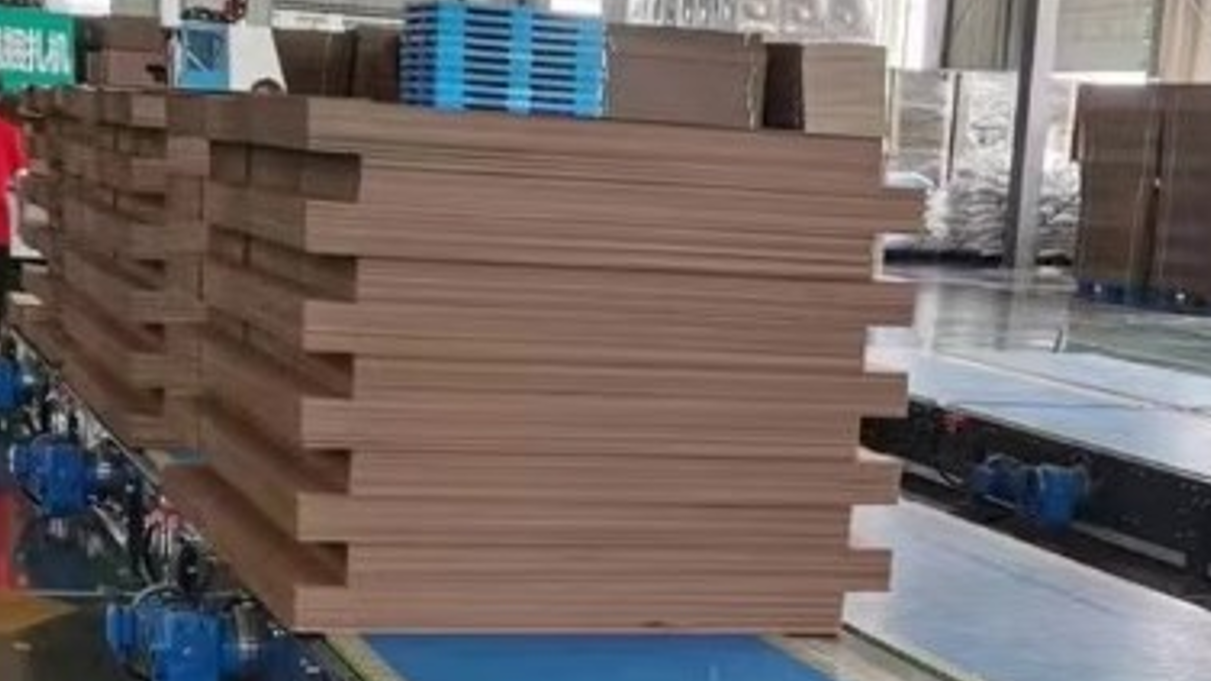

3. Optional bundle stacking function adapts to different packaging and transportation needs.
1. Compatible with 1100/1350mm center heights, fitting most corrugator line configurations.
2. Operates with AC380V 50Hz 3PH power supply, matching standard factory utilities.

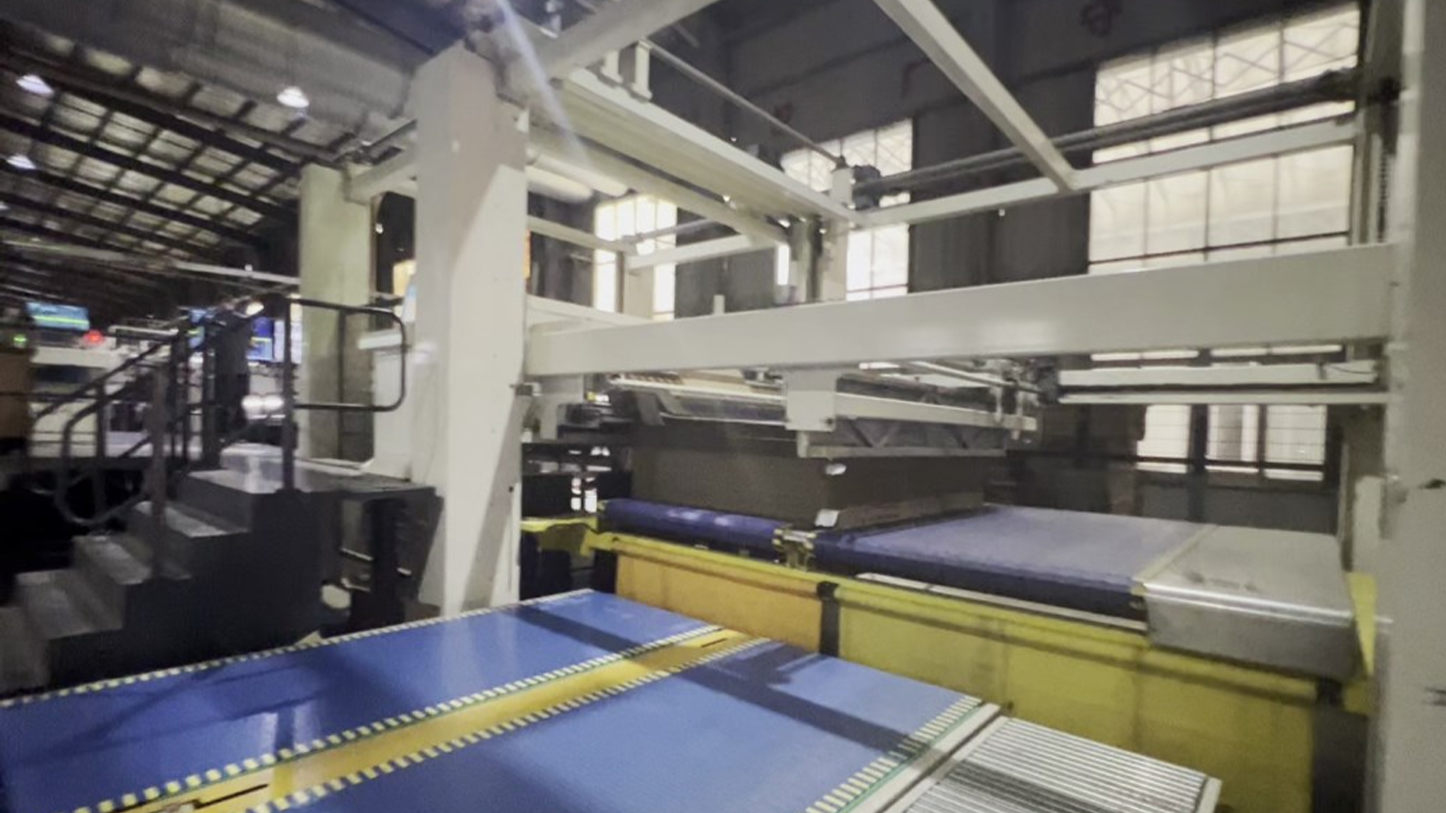

The heavy-duty lifting mechanism of this stacker ensures reliable handling of corrugated boards, enabling seamless integration into high-speed corrugator lines.
| Production Width | 2200mm / 2500mm / 2800mm / 3100mm / 3300mm | ||
| Board Length | *3600mm | *4500mm | ||
| Automatic Suction | standard | ||
| Bundle Stacking | Option | ||
| Max Speed | 400m/min | ||
| Separation Speed | 150~220m/min | ||
| Accuracy of Counting | ≈100% | ||
| Center Height | 1350mm | 1100mm | ||
| Power Supply | AC380V 50Hz 3PH | ||

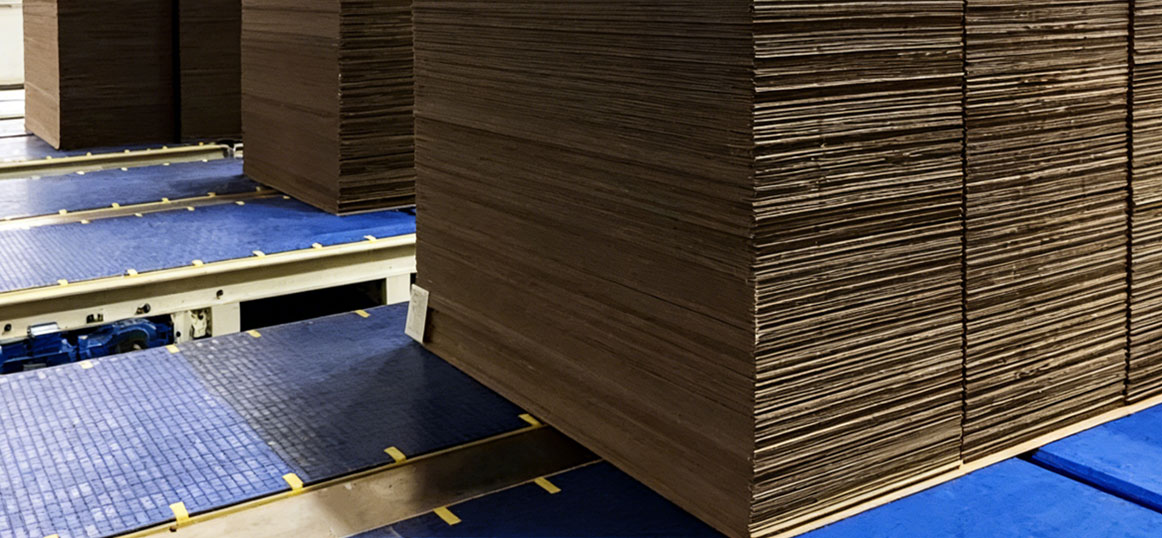

This up down stacker for corrugator automatically lifts and stacks corrugated boards with smooth, stable movement, ensuring orderly stacking and seamless integration into high-speed production lines.
