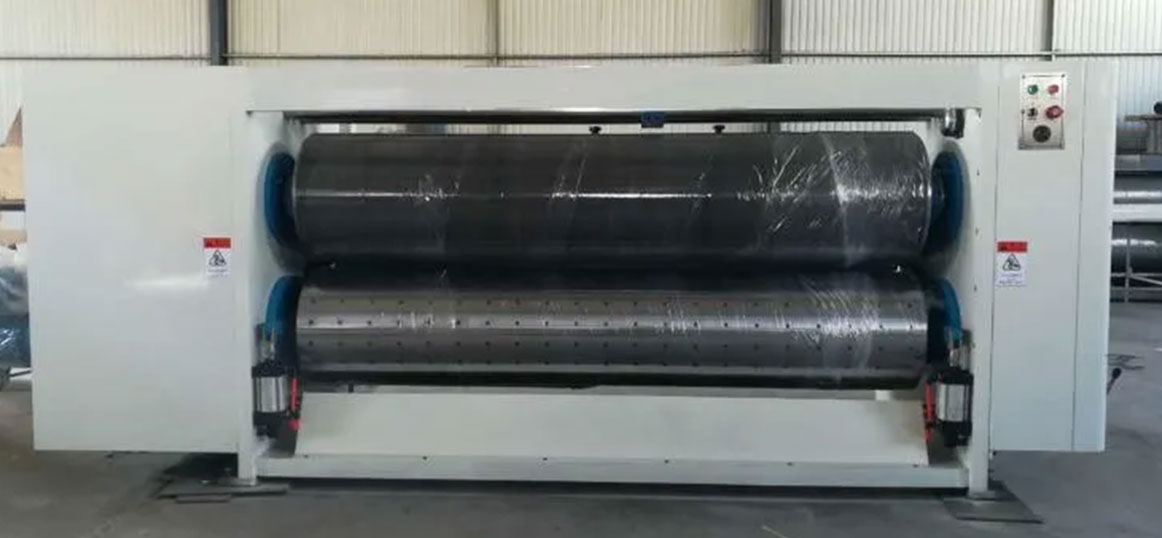

Multi-Function Rotary Shear

Core Advantages

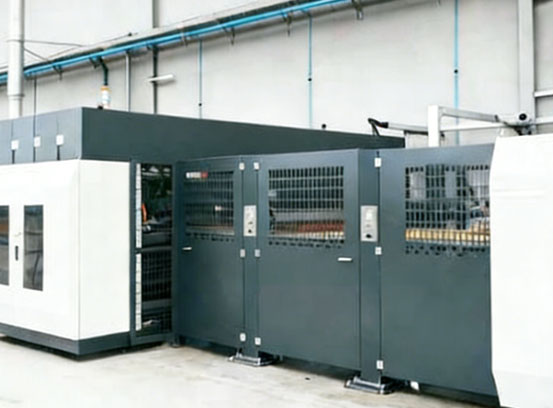

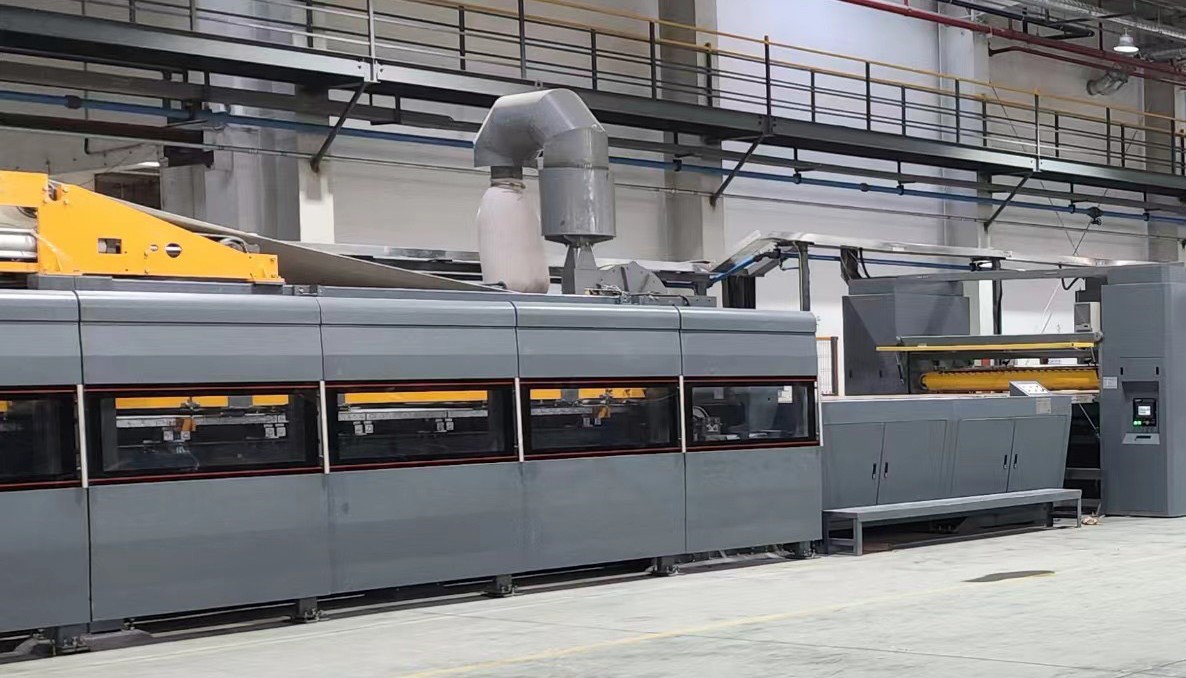

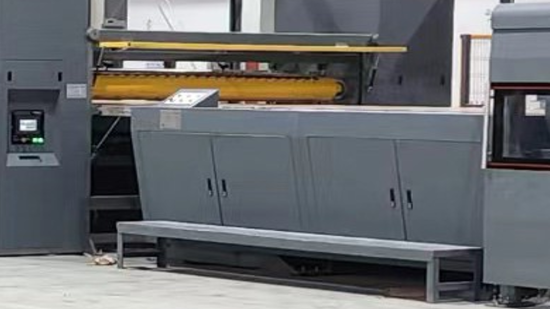

This RS-M26 Multi-Function Rotary Shear is a high-precision cutting solution for 3/5/7-ply corrugated boards, with key advantages:

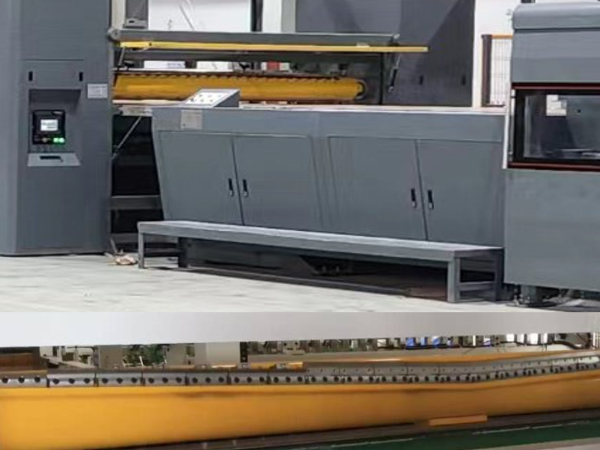

1. The V-shaped paper cutting roll and die-cutting roller, controlled by a bus control module, enable layered cutting of different specifications without stopping for order changes, ensuring square, consistent cardboard dimensions.

2. The cutting part features a circular running spiral rubber pad, which alleviates cutting impact and minimizes system inertia for smooth operation.

3. Left/right supporting frame design ensures stable performance under high-speed cutting conditions.

Application & User-Focused Design

It supports 2200–3300mm production widths, with a max 300m/min cutting speed and 260m/min order change speed. It addresses user pain points:

1. 150m/min remote discharge speed streamlines post-cutting material handling.

2. 100mm×2.6mm×34mm V-shaped knives deliver precise, clean cuts for diverse cardboard thicknesses.

3. 1100/1350mm center height options fit various corrugated line configurations.

Why Choose This Rotary Shear?

1. Compatible with AC380V 50Hz 3PH power, matching standard factory utilities.

2. Non-stop order changing capability reduces production downtime and improves line efficiency.

3. It balances high-speed precision, low-inertia cutting, and flexible adaptation—ideal for medium-to-high-speed corrugated production lines.
