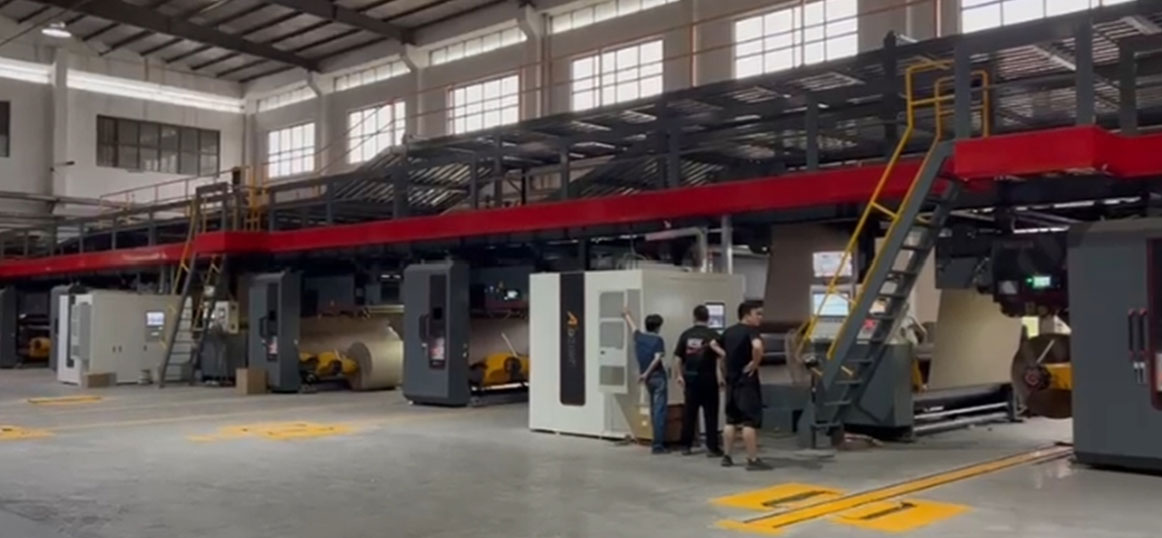

This Intelligent 2500mm 5ply Corrugated Board Production Line is built for high-stability manufacturing of heavy-duty 5-layer corrugated boards. It operates at a reliable 350-400m/min speed (calibrated to its 2500mm size), with a modular architecture that guarantees consistent, uninterrupted production. Its tailored features sync perfectly with the 2500mm specification, enabling smooth, efficient processing even for thick, heavy boards.
Specialized for 5-layer corrugated board production (ideal for heavy-duty packaging applications), this line supports all mainstream flute types (N,G,F,E,B,C,A) and is optimized for 2500mm-sized output. It aligns with corresponding monthly production volumes and layout parameters, with a design fine-tuned to the 2500mm configuration to meet large-scale heavy packaging material demands.
This 2500mm 5ply line delivers robust 5-layer board production, with performance parameters (including 4000kg/h steam consumption (1.1-1.2Mpa) and ~450KW power) precisely matched to its specification. It fits factory spaces of over 20000㎡ (compatible with its 100~115x10x5m layout) and is the ideal choice for manufacturers requiring high-volume, heavy-duty packaging material production—backed by stable, parameter-aligned performance.
This is the single facer’s conveying section: formed corrugated medium paper is stably transported here, preparing for bonding with liner paper.

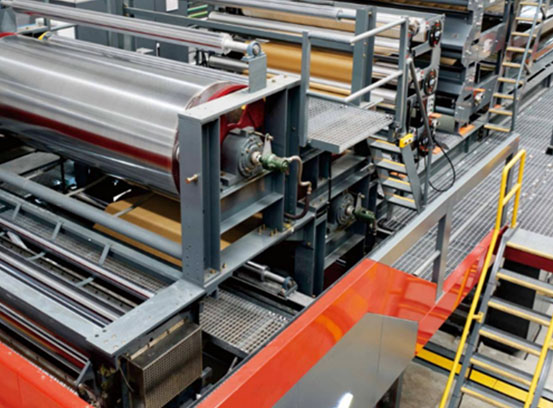

This section preconditions raw paper via heating rollers and bonds corrugated medium to liner paper, forming 3-ply or multi-ply corrugated board as a core part of the production line.

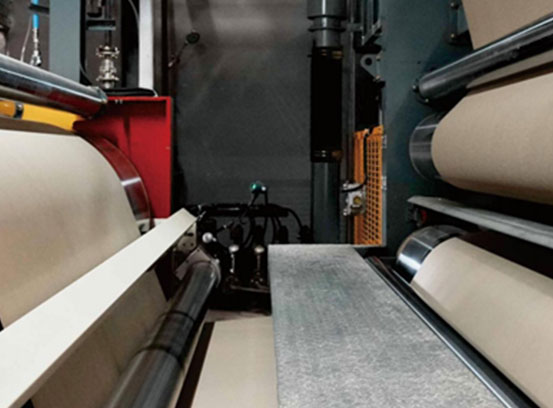

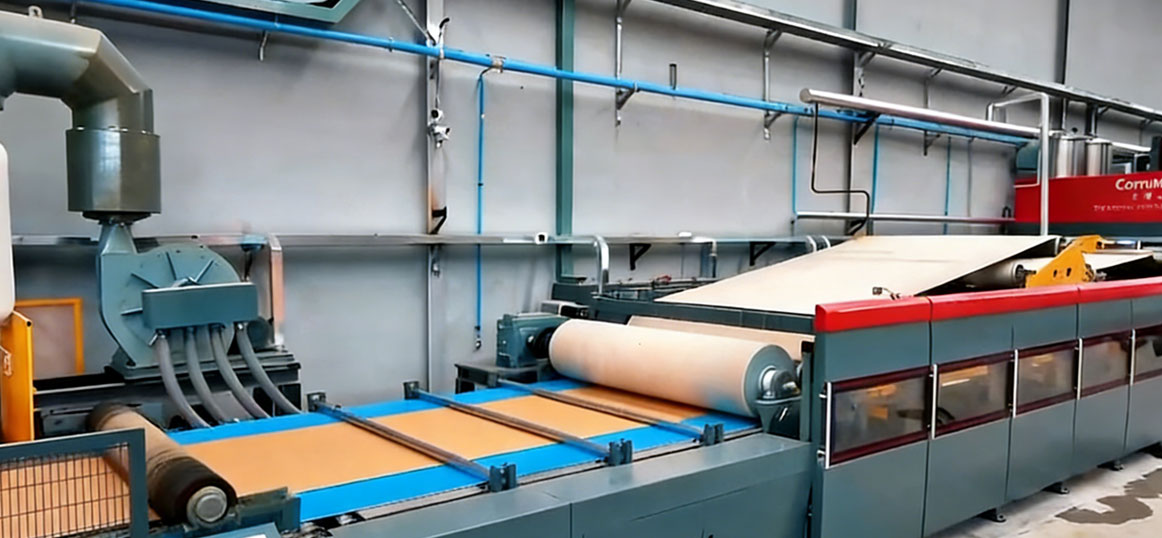

This section preconditions raw paper by precisely controlling temperature and moisture, ensuring optimal performance for subsequent corrugating and laminating processes.

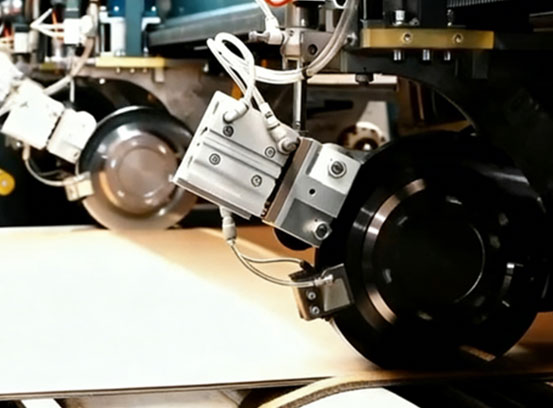

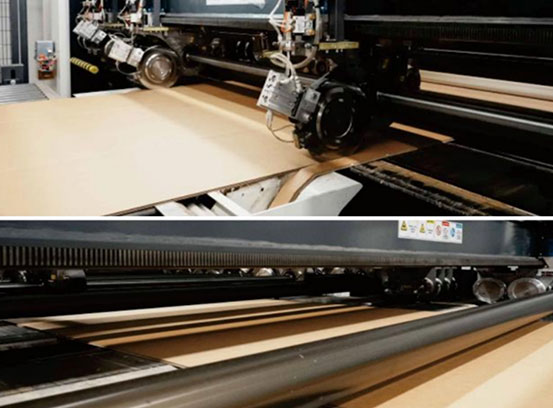

Accurately slits corrugated board to specified widths and forms precise score lines for easy folding, ensuring neat and consistent processing results.

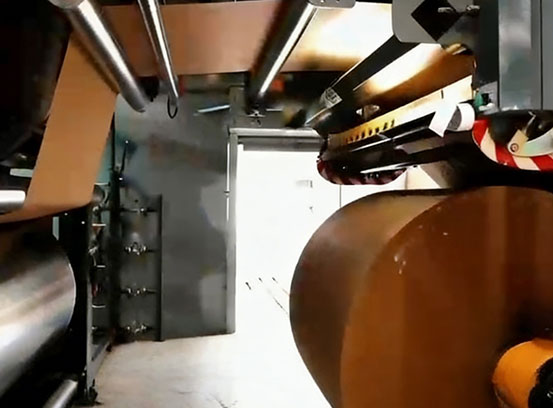

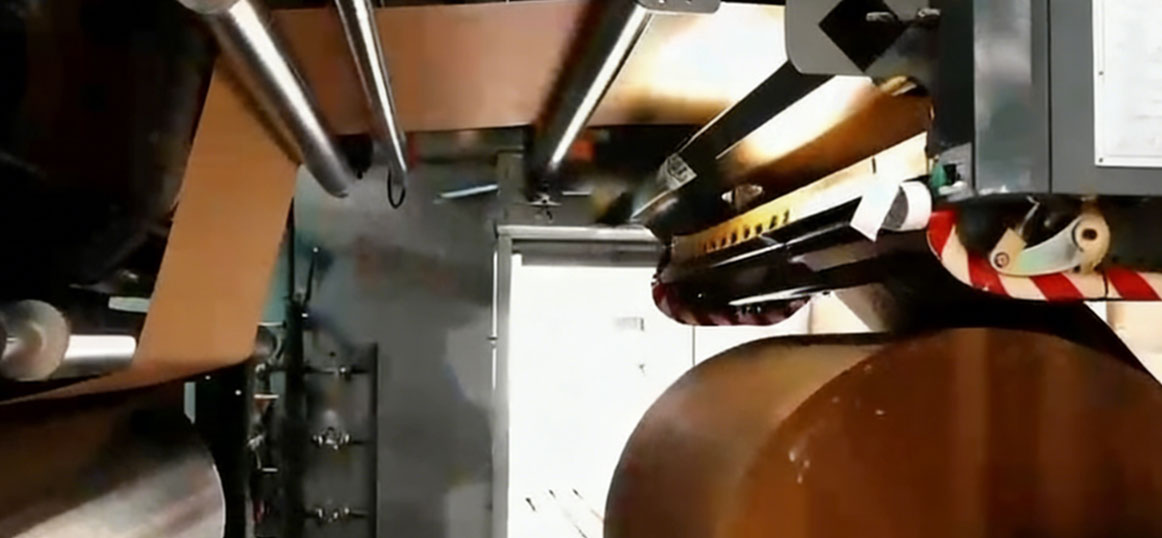

Automatically loads and unwinds raw paper reels with precise tension control, ensuring a stable, continuous paper supply to the corrugator line.

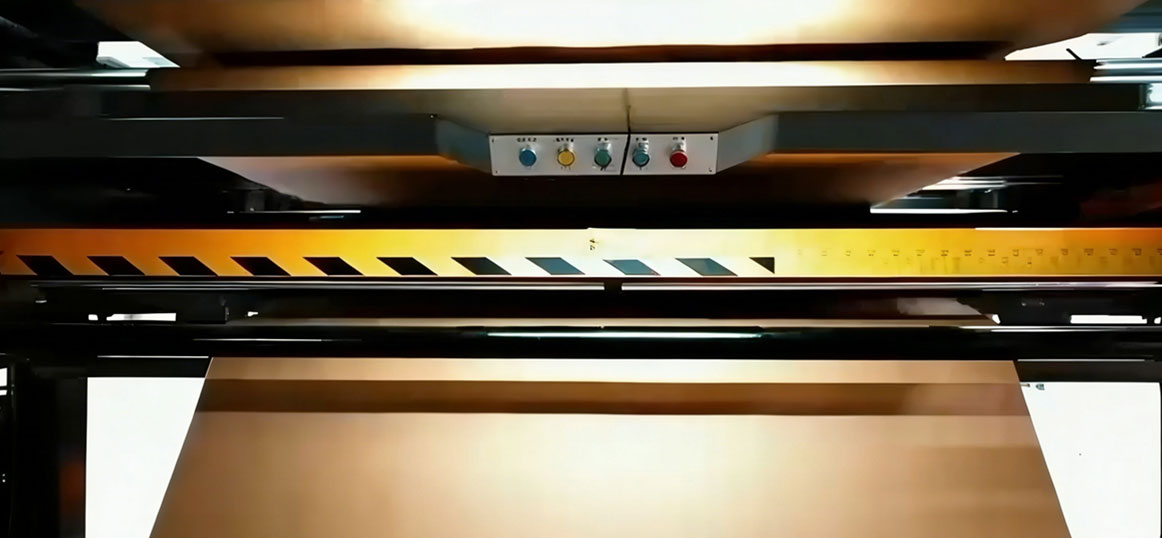

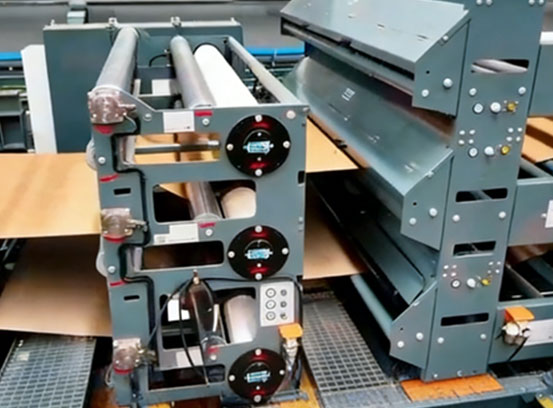

This function ensures precise alignment of corrugated board web on the bridge section of the production line.
| Size (mm) | 2500 (Master Line) | 2500 (Master Line) |
| Production Speed (m/min) | 350 | 400 |
| Flute Type | N, G, F, E, B, C, A | |
| Monthy Output (m²) | 15.8 million | 18 million |
| Machine Layout (m) (L*W*H) | 100~115x10x5 | 100~115x10x5 |
| Suggest Factory Land (m²） | >20000 | >20000 |
| Steam Consumption | 4000kg/h (1.1-1.2Mpa) | |
| Power Supply | ~450KW, ~380Vac, 50HZ, 3 phases 4 wires | |

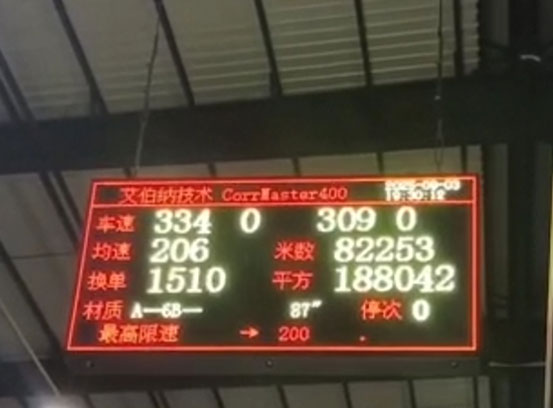

Showing key parameters like speed, length, and production area in real time, helping on-site personnel monitor the operation status accurately.
This integrated control station precisely manages the gluing process, regulating adhesive application amount and uniformity to ensure strong, consistent bonding between corrugated medium and liner paper.

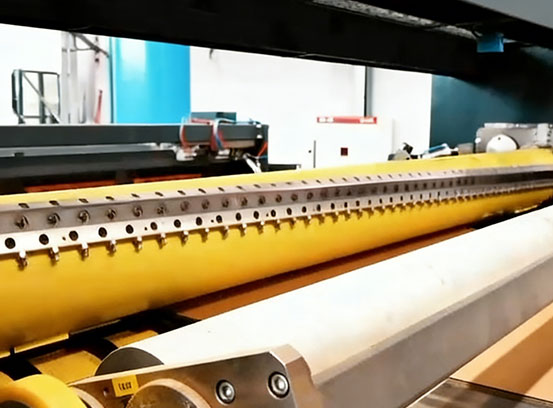

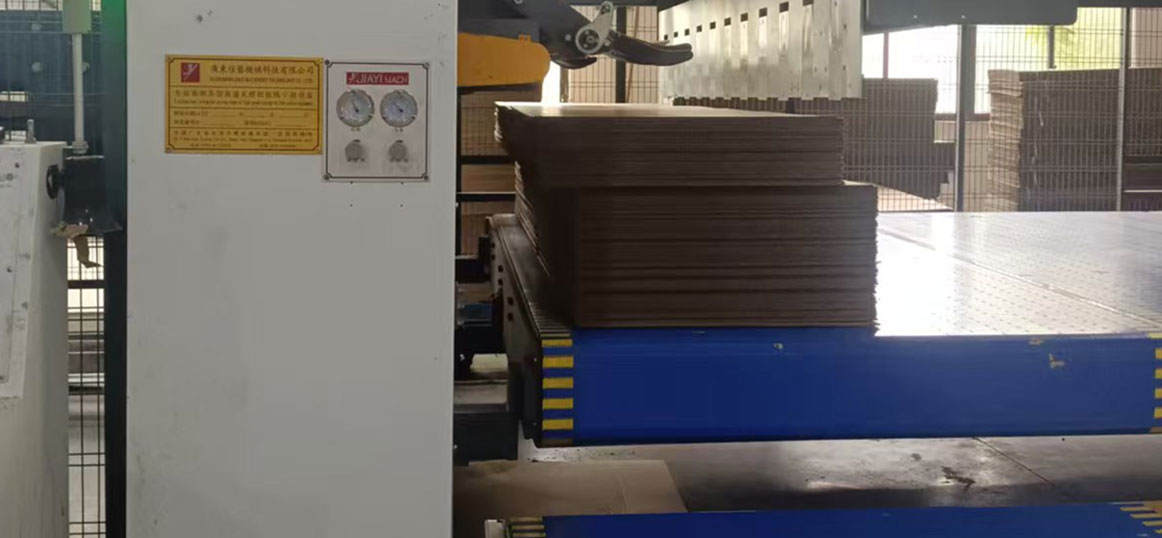

This high-precision NC Cutter delivers automated, accurate cutting of corrugated board to meet custom size requirements with consistent, clean edges.

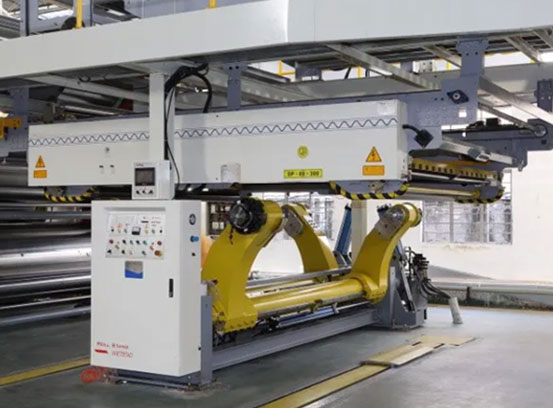

Delivers stable unwinding and tension control of raw paper reels for consistent feeding to the corrugator production line.
Slitter Scorer Unit precisely cuts and trims the corrugated board to the exact dimensions needed, delivering clean, uniform edges for reliable downstream processing.
