High-Precision NC Cutting Machine

Core Advantages

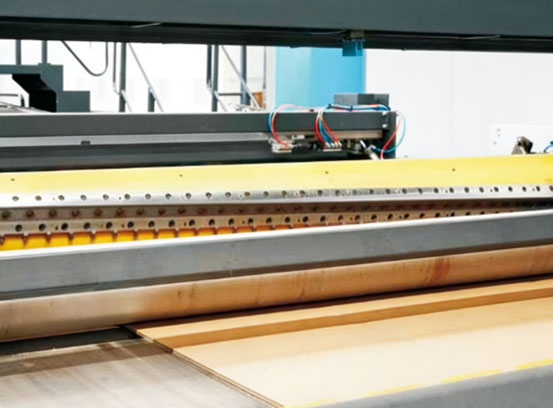

This NC Cutter is built with a high-quality steel base (strictly aged and precision machined) for long-term stable operation. Key advantages include:

1. Taiwanese original imported hollow knife tubes and gears, featuring super wear resistance and low noise.

2. A patented oil circulation lubrication system for knife axle bearings and gears, which automatically maintains components, effectively extending their service life (eliminating risks of oil shortage damage from pump failures).

3. Max speed up to 400m/min (when cut length exceeds 1800mm), with ±1mm cutting accuracy, compatible with 3/5/7ply corrugated boards—balancing high efficiency and precision.

Application & User-Focused Design

This unit supports optional production widths (1800mm, 2200mm, 2500mm, 2800mm, 3100mm, 3300mm) and cut lengths (400–9999mm; speed exceeds 200m/min for 500mm cut length). It addresses user pain points:

1. Serrated blades ensure smooth, neat, and accurate paper cutting.

2. Special tool adjustment and change structure enable fast, convenient tool operations.

3. Independent drive for inlet/outlet wheels, plus double-row solar wheels for paper presses; pneumatic pressure control (with UK Norgren imported regulator valve) guarantees smooth paper delivery.

4. The paper feed part adopts a push-pull design for easy tool adjustment and maintenance.

Why Choose This NC Cutter?

1. Equipped with Japanese IKO/NSK imported knife wheel bearings for reliability.

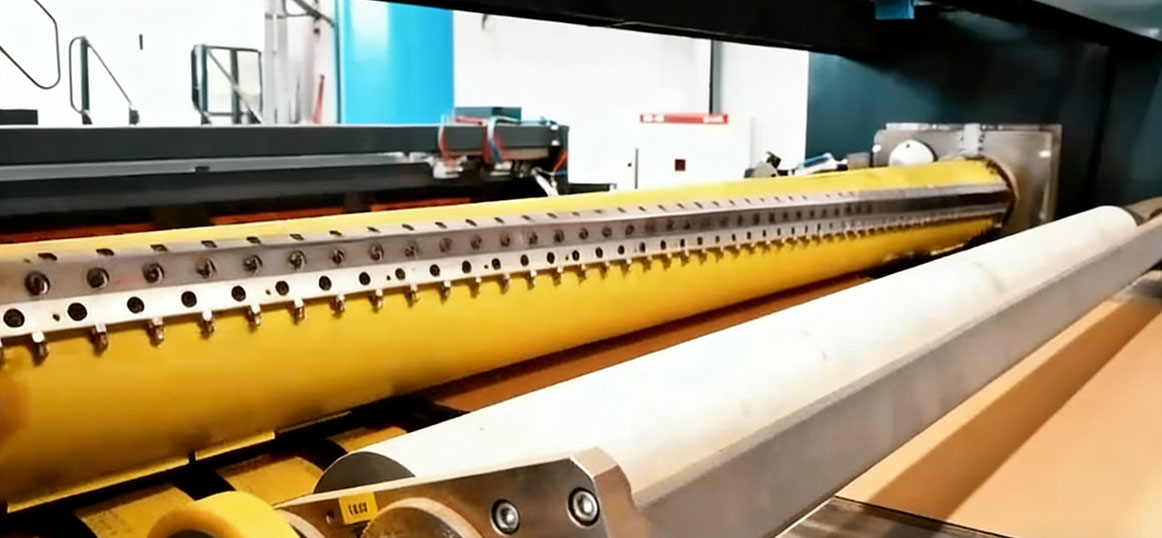

2. The cutting part uses an outer circular running spiral cutter roll to reduce cutting impact; automatic sharpening keeps knives sharp.

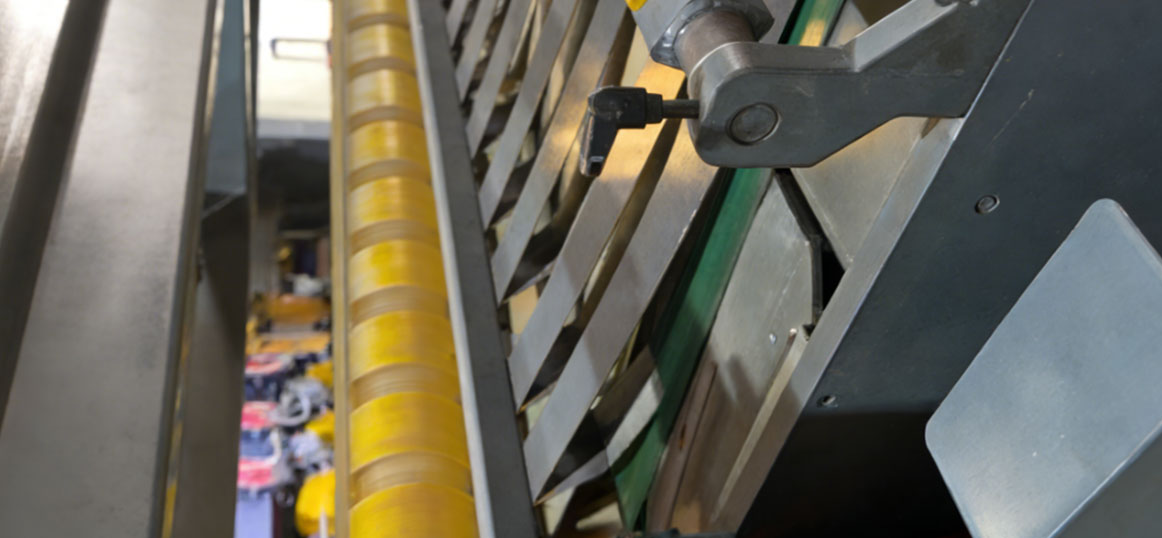

3. The paper outlet part uses an internal suction device for smooth board stacking.

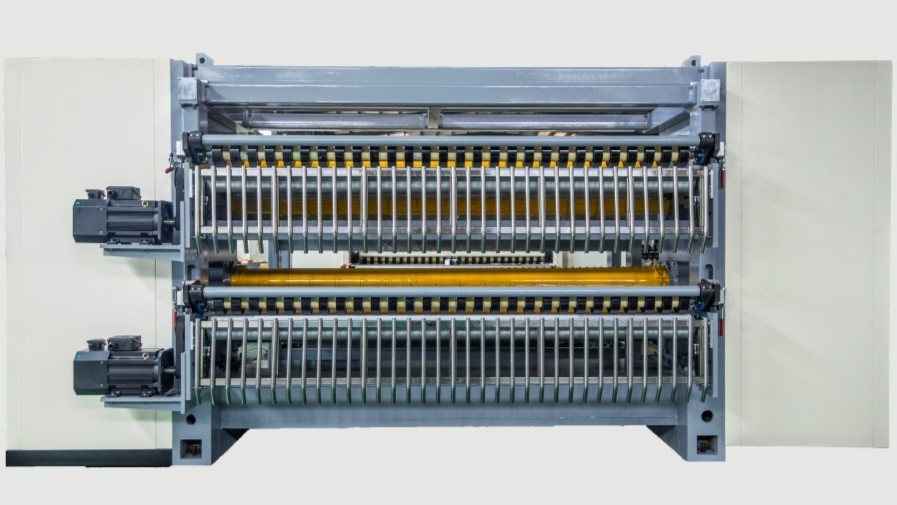

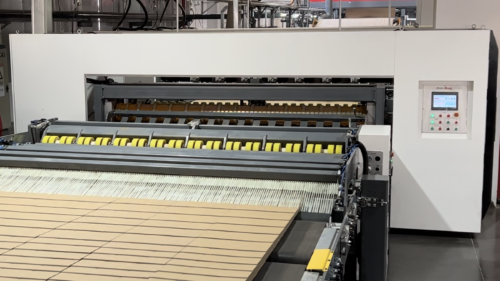

4. Optional single/double level cut-off adapts to diverse production needs.

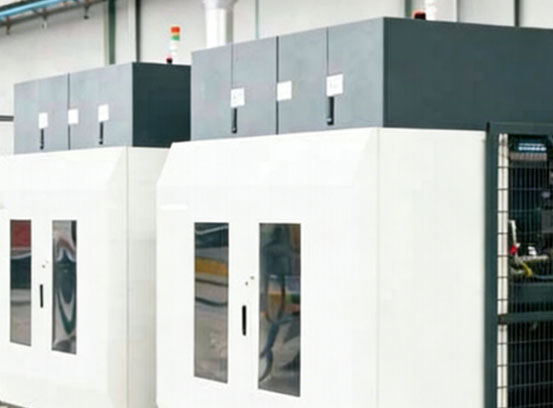

It combines stable performance, low maintenance, and high precision—ideal for corrugated board production lines.
