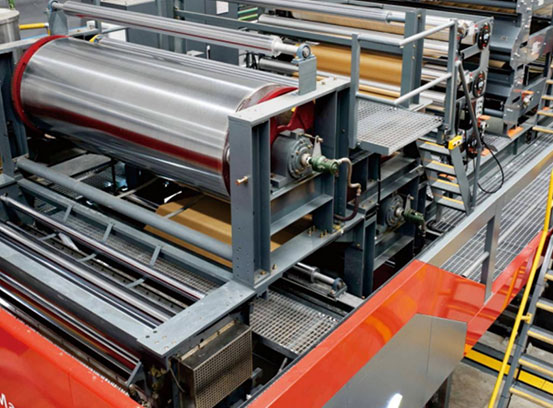

Heavy Duty Conveyor Bridge

Core Advantages

This BC30 | 40-3/5/7 Heavy Duty Conveyor Bridge is a robust material transport solution for corrugated lines, with key advantages:

1. Constructed from national standard high-quality profiles (all bolted connection), enabling convenient disassembly and transportation.

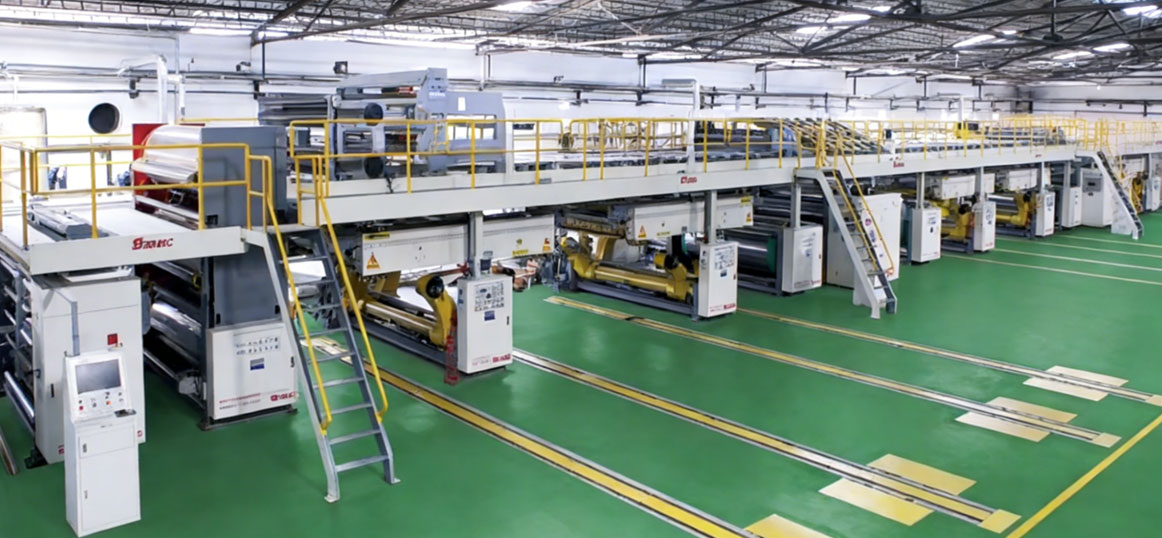

2. Equipped with bilateral stairs, sidewalks, and safety guardrails, facilitating safe, easy bridge operation.

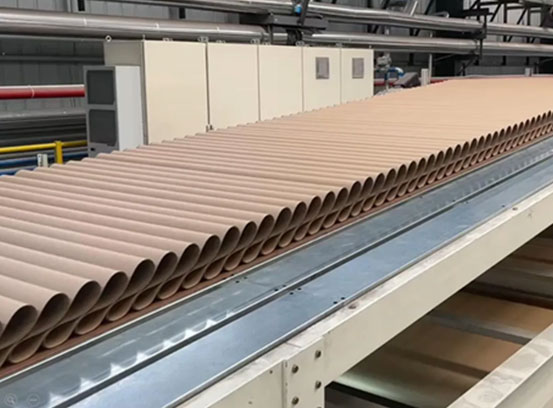

3. Power conveyor belt after the conveyor frame ensures smooth delivery of pit paper, avoiding material jams.

4. Flexible installation of bridge correction and tension control systems (frequency/servo sync speed; pneumatic brake/servo tension control) adapts to diverse production needs.

Application & User-Focused Design

It supports 2200–3300mm production widths and 3/5/7-layer bridge configurations, with max 375m/min production speed (450m/min design speed). It addresses user pain points:

1. e+L M | LLJD corrector ensures precise material alignment during transport.

2. Multi-layer compatibility fits 3/5/7-ply corrugated board production lines.

3. Matches standard factory utilities (10–12kg/cm² compressed air; AC380V 50Hz 3PH power).

Why Choose This Conveyor Bridge?

1. Heavy-duty profile construction ensures durability under high-throughput, multi-layer material transport.

2. Safety-focused design (guardrails, sidewalks) enhances on-site operational security.

3. It balances flexible adaptability, smooth material flow, and easy handling—ideal for medium-to-large corrugated production layouts.
