This corrugated web tension control and alignment system is a robust assistance device for corrugated lines, with key advantages:
1. Constructed from national standard high-quality profiles, enabling convenient disassembly and transportation.
2. Flexible installation of bridge correction and tension control systems (frequency/servo sync speed; pneumatic brake/servo tension control) adapts to diverse production needs.
It supports 1800–3350mm production widths and 3/5/7-layer bridge configurations, with max 400m/min production speed (450m/min design speed). It addresses user pain points:
1. It ensures precise material alignment during transport.
2. Multi-layer compatibility fits 3/5/7-ply corrugated board production lines.
3. Matches standard factory utilities (10–12kg/cm² compressed air; AC380V 50Hz 3PH power).
1. Advantage technology profile construction ensures durability under high-throughput, multi-layer material transport.
2. Easy operation on width and tension control, synchro with corrugated board production.
3. It balances flexible adaptability, smooth material flow, and easy handling—ideal for medium-to-large corrugated production layouts.
This tension & alignment master supports continuous, stable transport of corrugated web across the production line, ensuring uninterrupted material flow for high-speed manufacturing.
| Production Width | 1800mm / 2200mm / 2500mm / 2800mm / 3150mm / 3350mm / 3550mm | ||
| Bridge Layer | 3Lay | 5Lay | 7Lay | ||
| Design Speed | Max 450m/min | ||
| Production Speed | Max 400m/min | ||
| Machine Size | Lmax m × Wmax m × Hmax m | ||
| Sync Speed | Frequency | Servo | ||
| Tension Control | Pneumatic brake / Servo | ||
| Compressed Air | 10~12kg/cm² | ||
| Power Supply | AC380V 50Hz 3PH | ||

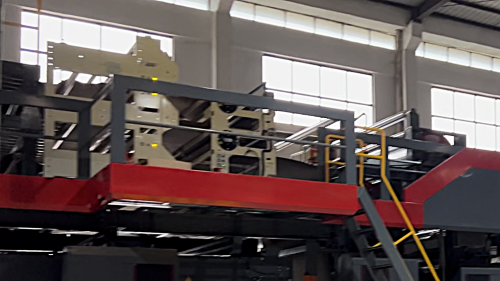

Running on the production floor, this high performance alignment and tension control system ensures seamless material transfer for uninterrupted corrugated board production.
