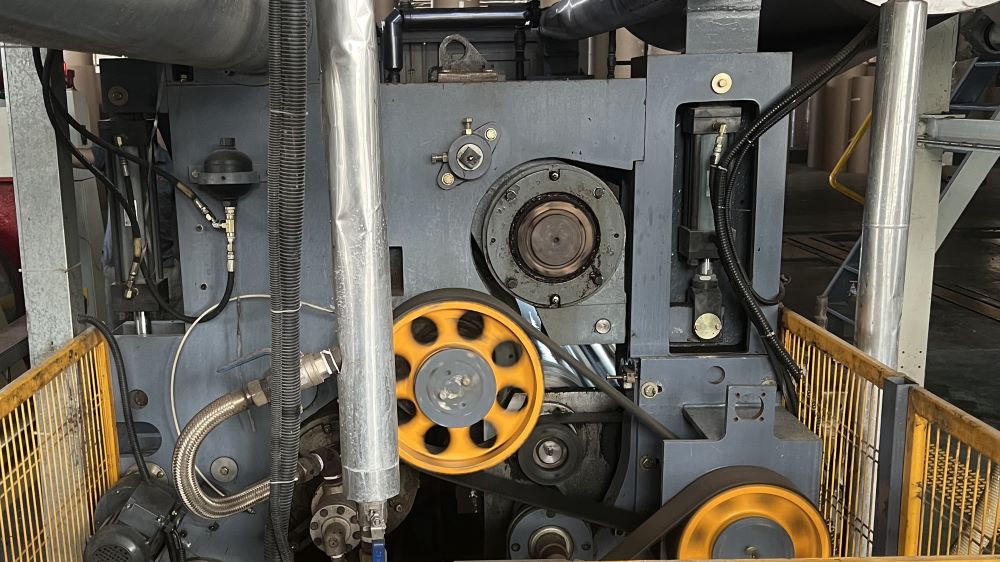

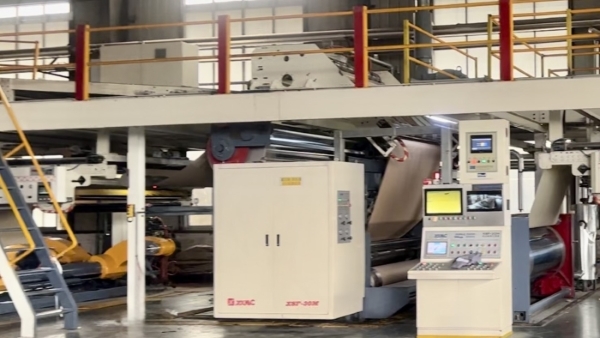

This Module Type Negative Pressure Single Facer is a core component for corrugated board production, with key advantages:
1. Module-type multi-flute design enables quick order conversion, supporting flexible production demands.
2. Negative pressure, corrugated roller (408/360 size) operates with low noise and resonance, ensuring stable, quiet running.
3. Translatable glue unit (700mm from the main body) simplifies cleaning and maintenance, cutting downtime.
4. Independent motor-driven glue roller idles to prevent dry paste buildup, reducing waste and upkeep.
It supports 1800–2500mm production widths, with a max 250m/min production speed. It addresses user pain points:
1. Module-type quick-roll change (2~3 hours) minimizes production interruptions for frequent order switches.
2. High-temperature grease-equipped corrugated/pressure roller bearings enhance durability under high loads.
3. Oil pressure-controlled roller pressure adjusts automatically by paper weight, optimizing bonding for diverse materials.
1. Glue unit with cooling bar and pressure roller control technology to ensure precise, consistent bonding.
2. Compact size (L4.6m×W4.3m×H2.3m for 2500mm width) saves workshop space.
3. Compatible with standard utilities (8–10kg/cm² steam; 4–8kg/cm² compressed air), fitting most factory setups.

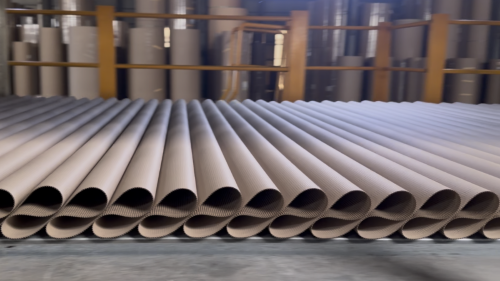

It balances fast changeover, low maintenance, and high speed—ideal for corrugated lines.
This layout diagram illustrates the precise mechanical and structural design of the negative pressure single facer, showcasing the integrated components that enable efficient corrugated board formation.

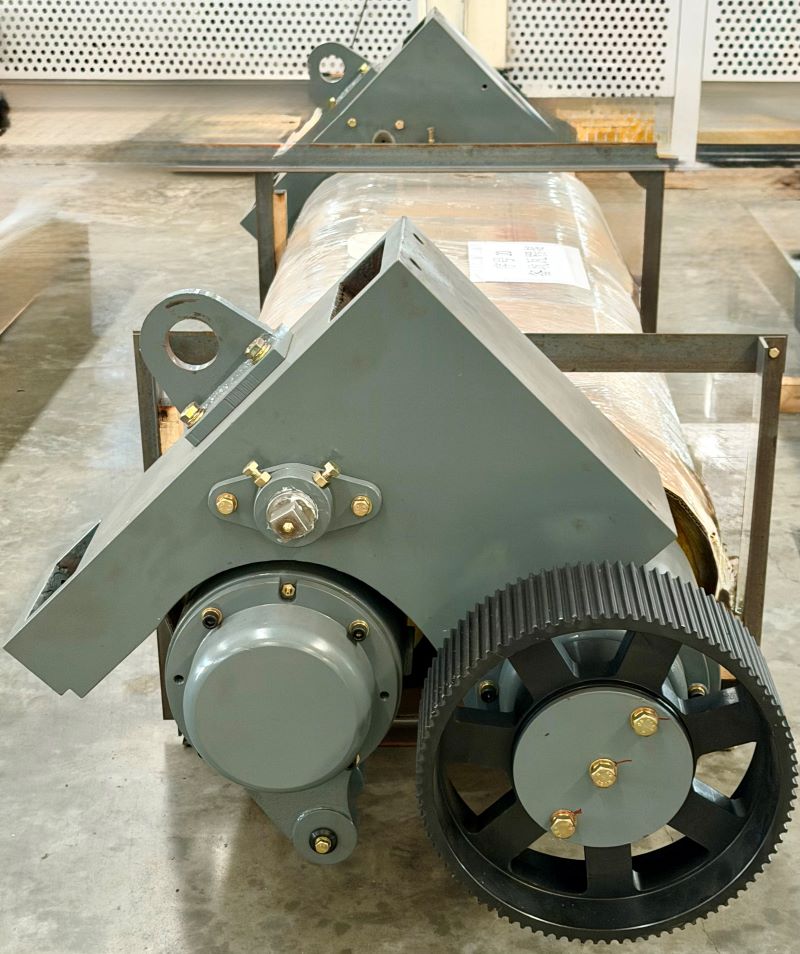

Easily way to change backup corrugated roll, available for A, B, C, E, F flute type.
| Production Width | 1800mm / 2200mm / 2500mm | ||
| Design Speed | *300m/min | ||
| Production Speed | *250m/min | ||
| Machine Size | L4.6m × W4.3m × H2.3m (2500) | ||
| Roll Change Method | Module type Quick-roll change | ||
| Roll Change Time | 2 hour ~ 3 hour | ||
| Steam | 8~10kg/cm² (Max 13kg/cm²) | ||
| Compressed Air | 4~8kg/cm² | ||
| Power Supply | AC380V 50Hz 3PH | ||

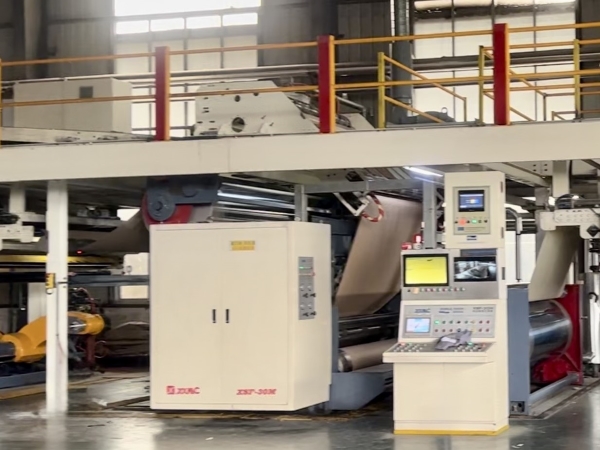

Equipped with automatic control system, the negative pressure single facer optimizes corrugating speed and reduces downtime, enhancing overall production efficiency.
